Description
Service your 10-speed transmission correctly with this Genuine GM Valve Body Bolt Kit, part number 24073070, designed for 2020–2026 Chevrolet Silverado 1500 and GMC Sierra 1500 equipped with the 3.0L LM2 or LZ0 Duramax diesel and 10L80 transmission.
This is the updated OEM fastener kit required when servicing or replacing the Gen 3 valve body. GM revised bolt locations and bolt lengths compared to earlier valve body designs, making this kit necessary when the valve body is removed for repair.
This kit replaces GM part number 24050764.
Features & Benefits:
– Genuine OEM GM valve body bolt kit
– Correct fasteners for updated Gen 3 valve body service
– Helps ensure proper valve body installation and sealing
– Required when the valve body is removed for certain repairs
– Direct replacement for updated OEM applications

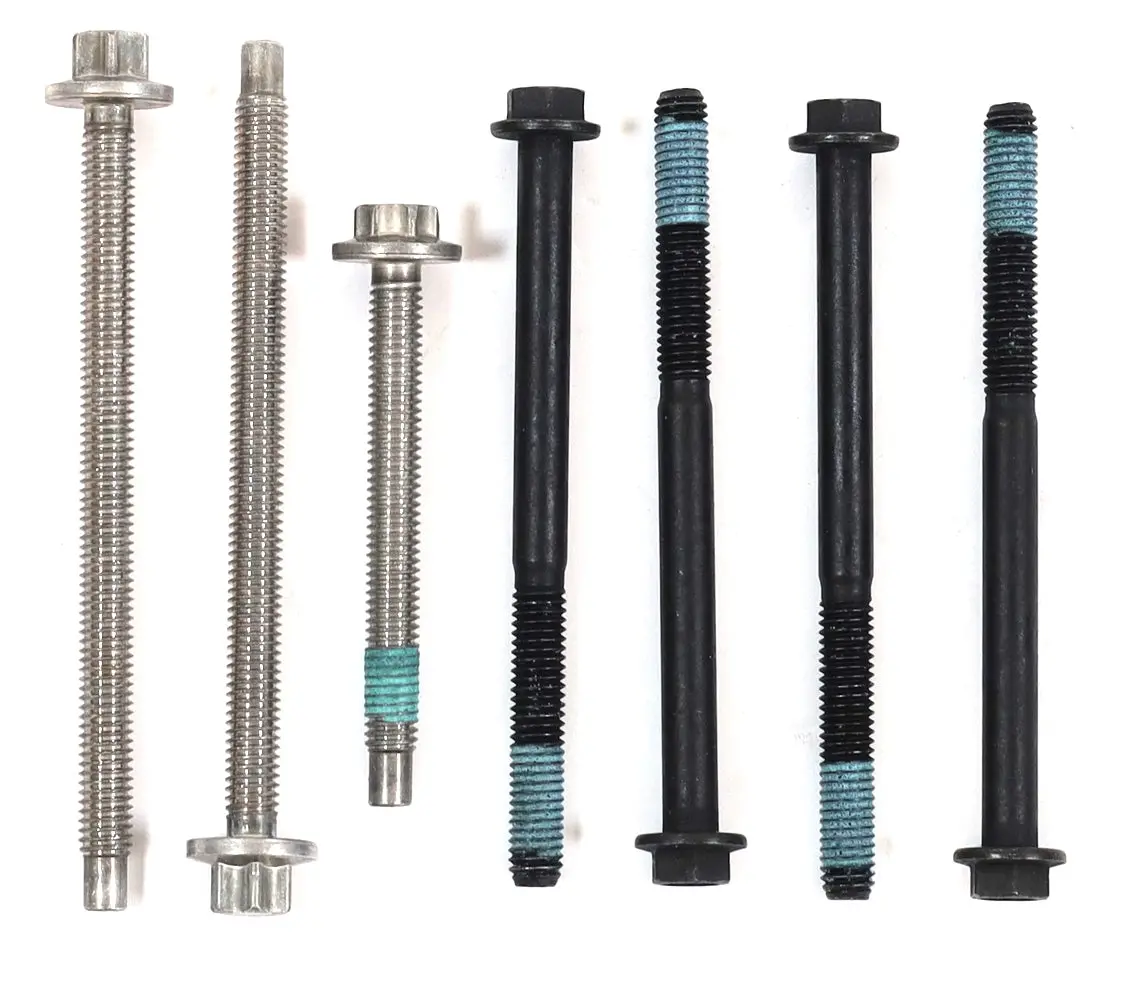

– Includes multiple bolt lengths used on the updated valve body: M6 x 68, M6 x 100, M6 x 45
What Changed on the Updated Valve Body
GM’s updated valve body design includes internal revisions for improved durability and debris tolerance, along with a simplified layout:
– Internal updates for better sediment mitigation
– Auxiliary valve body eliminated
– Default solenoid moved to the thick plate
– Mode valve and PCS moved to the solenoid body
– TCC solenoid relocated to the case-side valve body half
– Simplified internal flow passages and harness layout
– Solenoid cover deleted
Because of these updates, the bolt pattern and bolt lengths differ from earlier designs, and this bolt kit is required.
Vehicle Fitment:
2020–2026 Chevrolet Silverado 1500 3.0L Duramax LM2 / LZ0
2020–2026 GMC Sierra 1500 3.0L Duramax LM2 / LZ0
